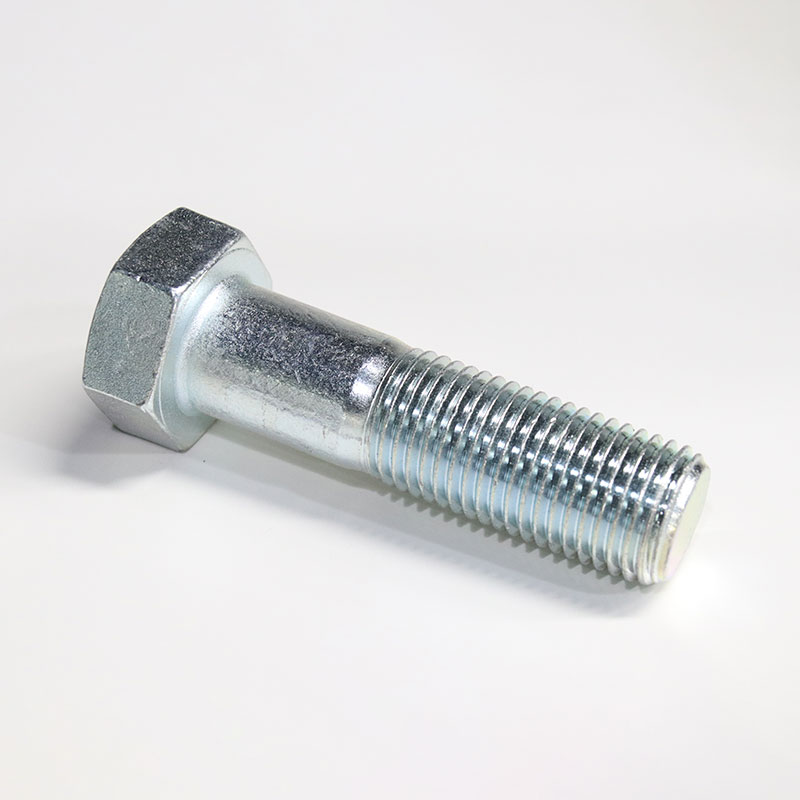

Hex Bolt Din 931 / iso4014 933 / iso4017 Grade10.9

Hex bolt DIN 931/ISO 4014 and 933/ISO 4017 standards. It is made with a high-strength grade 10.9 material, ensuring durability and reliability. The grade 10.9 refers to the tensile strength of the bolt, which is 1000 MPa or higher. This makes it suitable for use in applications where high strength and performance are required. In addition, the hex head design allows for easy installation and removal with common tools. Overall, this hex bolt is a top-quality choice for various industrial and construction needs.
send email to us

Products Details

Screw Thread d

M1.6

M2

M2.5

M3

(M3.5)

M4

M5

M6

(M7)

M8

M10

M12

P

Pitch

0.35

0.4

0.45

0.5

0.6

0.7

0.8

1

1

1.25

1.5

1.75

b

L≤125

9

10

11

12

13

14

16

18

20

22

26

30

125＜L≤200

15

16

17

18

19

20

22

24

26

28

32

36

L＞200

28

29

30

31

32

33

35

37

39

41

45

49

c

max

0.25

0.25

0.25

0.4

0.4

0.4

0.5

0.5

0.6

0.6

0.6

0.6

min

0.1

0.1

0.1

0.15

0.15

0.15

0.15

0.15

0.15

0.15

0.15

0.15

da

max

2

2.6

3.1

3.6

4.1

4.7

5.7

6.8

7.8

9.2

11.2

13.7

ds

max=nominal size

1.6

2

2.5

3

3.5

4

5

6

7

8

10

12

Grade A

min

1.46

1.86

2.36

2.86

3.32

3.82

4.82

5.82

6.78

7.78

9.78

11.73

Grade B

min

1.35

1.75

2.25

2.75

3.2

3.7

4.7

5.7

6.64

7.64

9.64

11.57

dw

Grade A

min

2.54

3.34

4.34

4.84

5.34

6.2

7.2

8.88

9.63

11.63

14.63

16.63

Grade B

min

2.42

3.22

4.22

4.72

5.22

6.06

7.06

8.74

9.47

11.47

14.47

16.47

e

Grade A

min

3.41

4.32

5.45

6.01

6.58

7.66

8.79

11.05

12.12

14.38

17.77

20.03

Grade B

min

3.28

4.18

5.31

5.88

6.44

7.5

8.63

10.89

11.94

14.2

17.59

19.85

L1

max

0.6

0.8

1

1

1

1.2

1.2

1.4

1.4

2

2

3

k

Nominal Size

1.1

1.4

1.7

2

2.4

2.8

3.5

4

4.8

5.3

6.4

7.5

Grade A

max

1.225

1.525

1.825

2.125

2.525

2.925

3.65

4.15

4.95

5.45

6.58

7.68

min

0.975

1.275

1.575

1.875

2.275

2.675

3.35

3.85

4.65

5.15

6.22

7.32

Grade B

max

1.3

1.6

1.9

2.2

2.6

3

3.74

4.24

5.04

5.54

6.69

7.79

min

0.9

1.2

1.5

1.8

2.2

2.6

3.26

3.76

4.56

5.06

6.11

7.21

k1

Grade A

min

0.68

0.89

1.1

1.31

1.59

1.87

2.35

2.7

3.26

3.61

4.35

5.12

Grade B

min

0.63

0.84

1.05

1.26

1.54

1.82

2.28

2.63

3.19

3.54

4.28

5.05

r

min

0.1

0.1

0.1

0.1

0.1

0.2

0.2

0.25

0.25

0.4

0.4

0.6

s

max=nominal size

3.2

4

5

5.5

6

7

8

10

11

13

16

18

Grade A

min

3.02

3.82

4.82

5.32

5.82

6.78

7.78

9.78

10.73

12.73

15.73

17.73

Grade B

min

2.9

3.7

4.7

5.2

5.7

6.64

7.64

9.64

10.57

12.57

15.57

17.57

Length of Thread b

-

-

-

-

-

-

-

-

-

-

-

-

Screw Thread d

(M14)

M16

(M18)

M20

(M22)

M24

(M27)

M30

(M33)

M36

(M39)

M42

P

Pitch

2

2

2.5

2.5

2.5

3

3

3.5

3.5

4

4

4.5

b

L≤125

34

38

42

46

50

54

60

66

72

-

-

-

125＜L≤200

40

44

48

52

56

60

66

72

78

84

90

96

L＞200

53

57

61

65

69

73

79

85

91

97

103

109

c

max

0.6

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

1

1

min

0.15

0.2

0.2

0.2

0.2

0.2

0.2

0.2

0.2

0.2

0.3

0.3

da

max

15.7

17.7

20.2

22.4

24.4

26.4

30.4

33.4

36.4

39.4

42.4

45.6

ds

max=nominal size

14

16

18

20

22

24

27

30

33

36

39

42

Grade A

min

13.73

15.73

17.73

19.67

21.67

23.67

-

-

-

-

-

-

Grade B

min

13.57

15.57

17.57

19.48

21.48

23.48

26.48

29.48

32.38

35.38

38.38

41.38

dw

Grade A

min

19.64

22.49

25.34

28.19

31.71

33.61

-

-

-

-

-

-

Grade B

min

19.15

22

24.85

27.7

31.35

33.25

38

42.75

46.55

51.11

55.86

59.95

e

Grade A

min

23.36

26.75

30.14

33.53

37.72

39.98

-

-

-

-

-

-

Grade B

min

22.78

26.17

29.56

32.95

37.29

39.55

45.2

50.85

55.37

60.79

66.44

71.3

L1

max

3

3

3

4

4

4

6

6

6

6

6

8

k

Nominal Size

8.8

10

11.5

12.5

14

15

17

18.7

21

22.5

25

26

Grade A

max

8.98

10.18

11.715

12.715

14.215

15.215

-

-

-

-

-

-

min

8.62

9.82

11.285

12.285

13.785

14.785

-

-

-

-

-

-

Grade B

max

9.09

10.29

11.85

12.85

14.35

15.35

17.35

19.12

21.42

22.92

25.42

26.42

min

8.51

9.71

11.15

12.15

13.65

14.65

16.65

18.28

20.58

22.08

24.58

25.58

k1

Grade A

min

6.03

6.87

7.9

8.6

9.65

10.35

-

-

-

-

-

-

Grade B

min

5.96

6.8

7.81

8.51

9.56

10.26

11.66

12.8

14.41

15.46

17.21

17.91

r

min

0.6

0.6

0.6

0.8

0.8

0.8

1

1

1

1

1

1.2

s

max=nominal size

21

24

27

30

34

36

41

46

50

55

60

65

Grade A

min

20.67

23.67

26.67

29.67

33.38

35.38

-

-

-

-

-

-

Grade B

min

20.16

23.16

26.16

29.16

33

35

40

45

49

53.8

58.8

63.1

Length of Thread b

-

-

-

-

-

-

-

-

-

-

Screw Thread d

(M45)

M48

(M52)

M56

(M60)

M64

P

Pitch

4.5

5

5

5.5

5.5

6

b

L≤125

-

-

-

-

-

-

125＜L≤200

102

108

116

-

-

-

L＞200

115

121

129

137

145

153

c

max

1

1

1

1

1

1

min

0.3

0.3

0.3

0.3

0.3

0.3

da

max

48.6

52.6

56.6

63

67

71

ds

max=nominal size

45

48

52

56

60

64

Grade A

min

-

-

-

-

-

-

Grade B

min

44.38

47.38

51.26

55.26

59.26

63.26

dw

Grade A

min

-

-

-

-

-

-

Grade B

min

64.7

69.45

74.2

78.66

83.41

88.16

e

Grade A

min

-

-

-

-

-

-

Grade B

min

76.95

82.6

88.25

93.56

99.21

104.86

L1

max

8

10

10

12

12

13

k

Nominal Size

28

30

33

35

38

40

Grade A

max

-

-

-

-

-

-

min

-

-

-

-

-

-

Grade B

max

28.42

30.42

33.5

35.5

38.5

40.5

min

27.58

29.58

32.5

34.5

37.5

39.5

k1

Grade A

min

-

-

-

-

-

-

Grade B

min

19.31

20.71

22.75

24.15

26.25

27.65

r

min

1.2

1.6

1.6

2

2

2

s

max=nominal size

70

75

80

85

90

95

Grade A

min

-

-

-

-

-

-

Grade B

min

68.1

73.1

78.1

82.8

87.8

92.8

Length of Thread b

-

-

-

-

-

-

Products name HEX BOLT DIN 931/ISO4014 half thread
Standard DIN,ASTM/ANSI JIS EN ISO,AS,GB
Grade Steel Grade: DIN: Gr.4.6,4.8,5.6,5.8,8.8,10.9,12.9; SAE: Gr.2,5,8; ASTM: 307A,A325,A490,
Finishing Zinc(Yellow,White,Blue,Black),Hop Dip Galvanized(HDG),Black Oxide, Geomet,Dacroment,anodization,Nickel plated,Zinc-Nickel plated
Production Process M2-M24:Cold Froging,M24-M100 Hot Forging, Machining and CNC for Customized fastener
Customized Products Lead time 30-60days,
Hex Bolt Din 931 / iso4014 933 / iso4017 Grade10.9 is a high-quality product designed to deliver top-notch performance. Its 10.9 grade confirms its strength capabilities, making it highly recommended for industrial applications. This hex bolt model comes in three different options to suit various requirements, including Iso4014 933, Iso4017, and Din 931. The 10.9 grading of this hex bolt translates to a tensile strength of 1000 N/mm² and a yield stress of 900 N/mm². Its high strength properties make it ideal for applications that require high-load bearing capacities or those exposed to high temperatures, such as the automotive and petrochemical industries. This hex bolt model has been manufactured to meet the quality standards of Din 931, Iso4014 933, and Iso4017. This means that it undergoes rigorous quality checks to ensure that it meets the strict specifications outlined in these standards. Additionally, it goes through a hardening process to enhance its strength properties for superior performance. Hex Bolt Din 931 / iso4014 933 / iso4017 Grade10.9 is made of high-grade materials that ensure that it is resistant to corrosion, oxidation, and wear and tear. Its structural integrity is such that it can withstand constant usage and exposure to harsh environmental conditions without experiencing any damage. In conclusion, Hex Bolt Din 931 / iso4014 933 / iso4017 Grade10.9 is a robust and reliable product that is specifically designed for industrial use. Its 10.9 grading, coupled with its adherence to quality standards, makes it a high-performance bolt with superior strength properties. Its durability and resistance to harsh environmental conditions make it an excellent investment for any industrial application.
